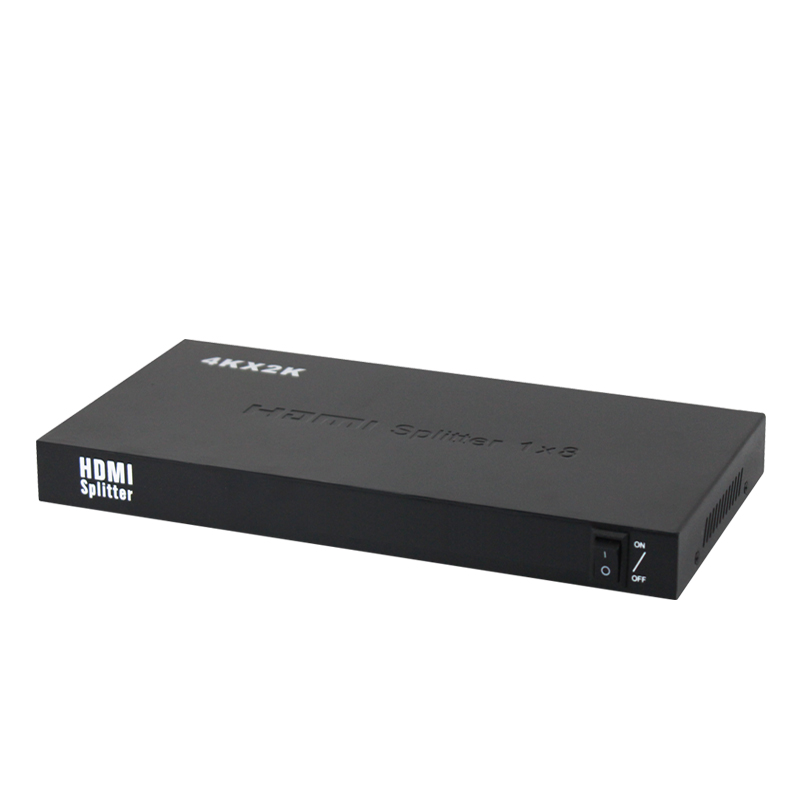

Product name: HDMI 1.4 1x8 Splitter

Model: HS-108A

1. Package Contents

• 1 x 4K UHD HDMI Splitter (1 Input, 8 Outputs)

• 1 x Power adapter

• 1 x User Manual

2. Connect and Operate

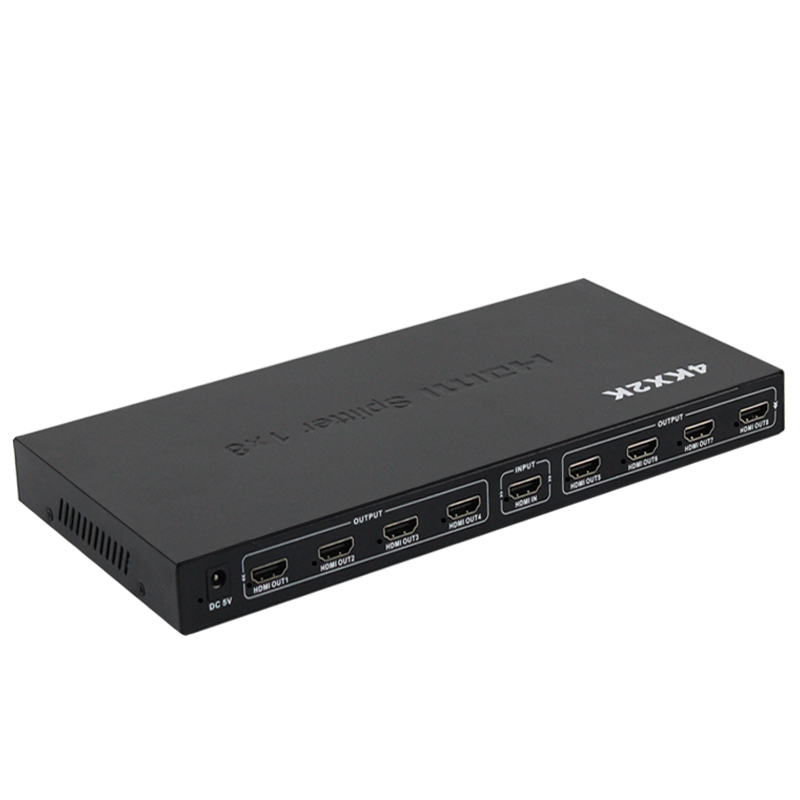

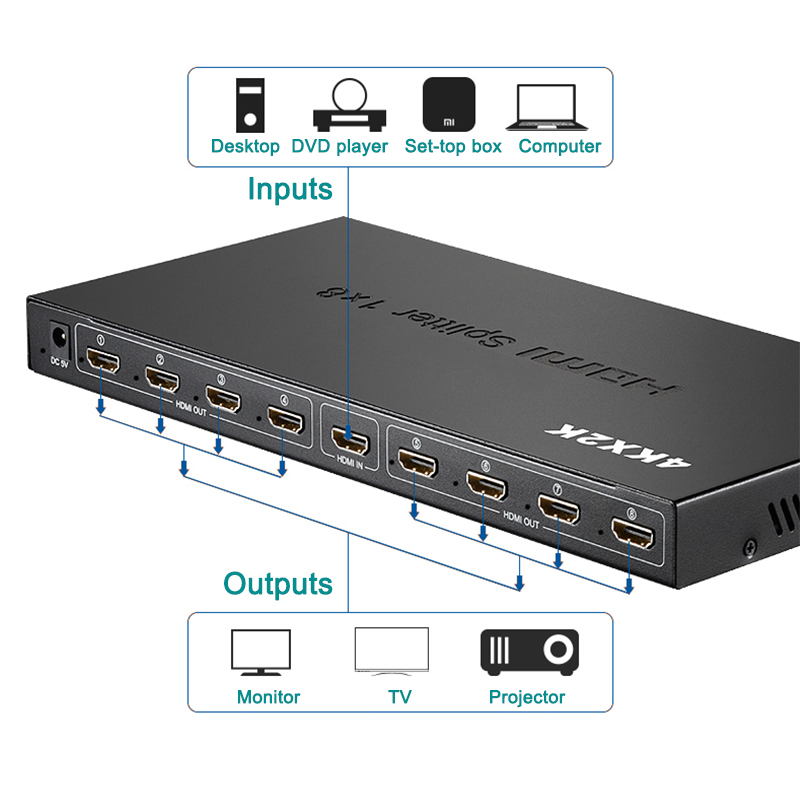

• Connect the HD source to the Splitter input with one HDMI cable

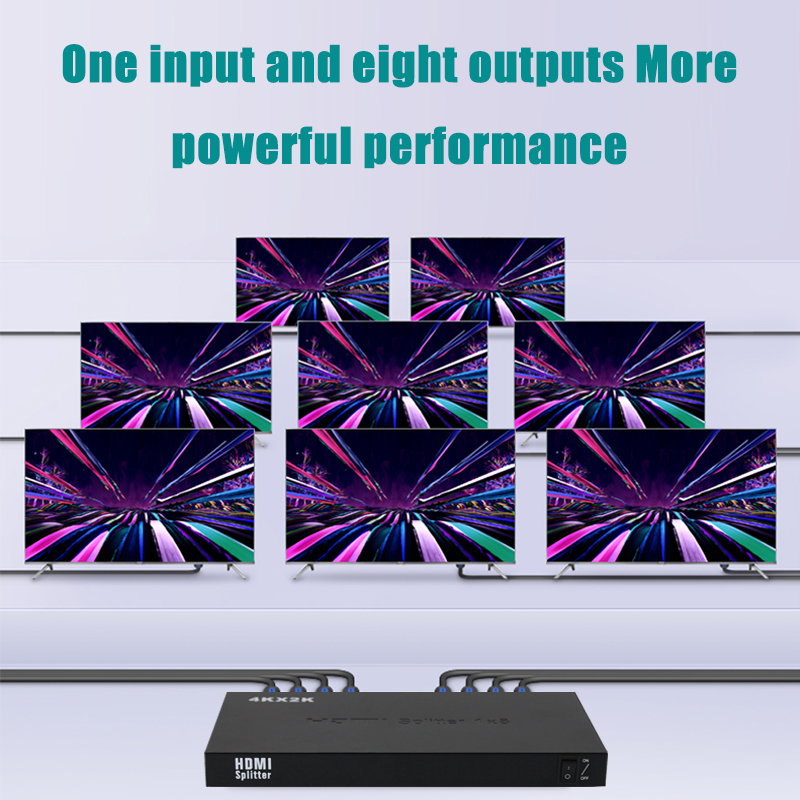

• Connect the Splitter output to the displays with 8 HDMI cables

• Connect the 5V/3A power adapter to the Splitter

• Reset button: it’s a Reset key for system Reset.

3. Specification

• Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V/3A

• Supports resolution up to 4K x 2K @ 30Hz

• HDCP 1.4 Protocol Compliant

• Compatible with HDMI 1.4/ 1.3/ 1.2/1.1/1.0

• Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD / DTS-HD Master.

• Max bandwidth: 320MHz

• Max baud rate: 3.2Gbps

• Input cable distance: (1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable

• Output cable distance: (1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable

• Full Shield and Gold Plated Connectors for Better Image / Sound Quality/ Stable signal transmission and more durability.

4. Attention

• Do not expose to liquids, fire, or explosive substances.

• Do not expose to extreme temperatures.

• Do not disassemble.

• Unplug during lightning storms or when unused for an extended period of time.

• Children should be supervised to ensure they do not play with the appliance.

Unit size：27.7x13.5x2.5cm

Net Unit Weight：900g

Gross Unit Weight：1000g

Gift box size：32.5x23x6.5cm

Master carton dimensions：34.5x33x48CM

Pieces per master carton：10 PCS  N.W.：10kg   G.W.：11kg
