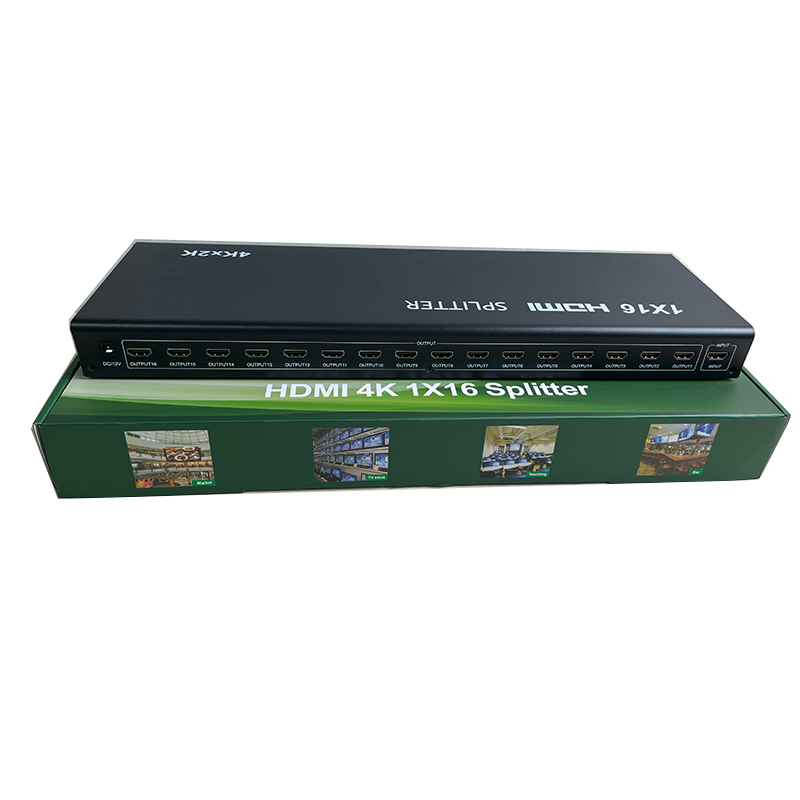

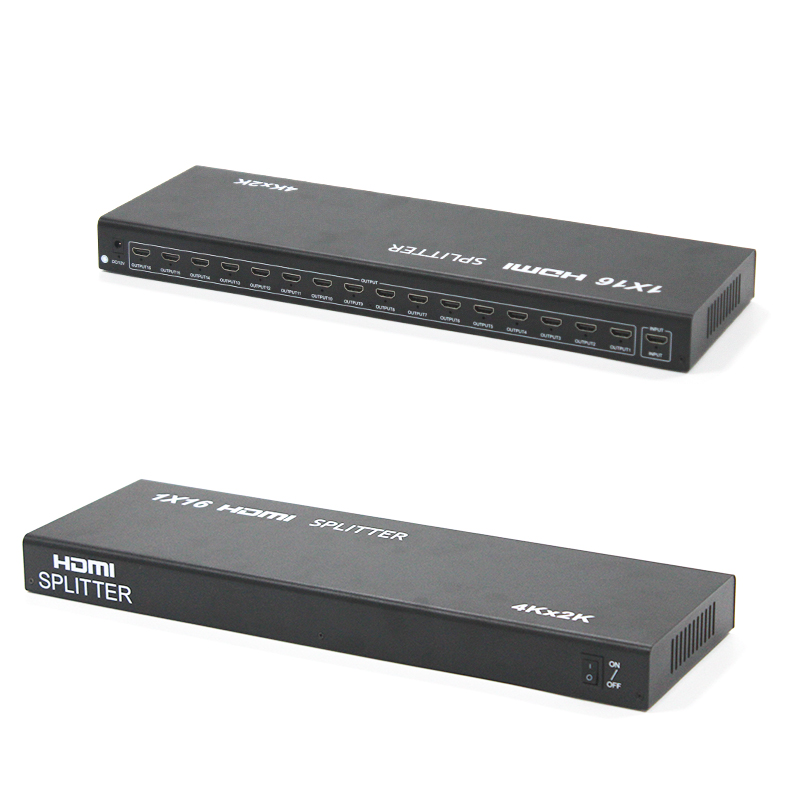

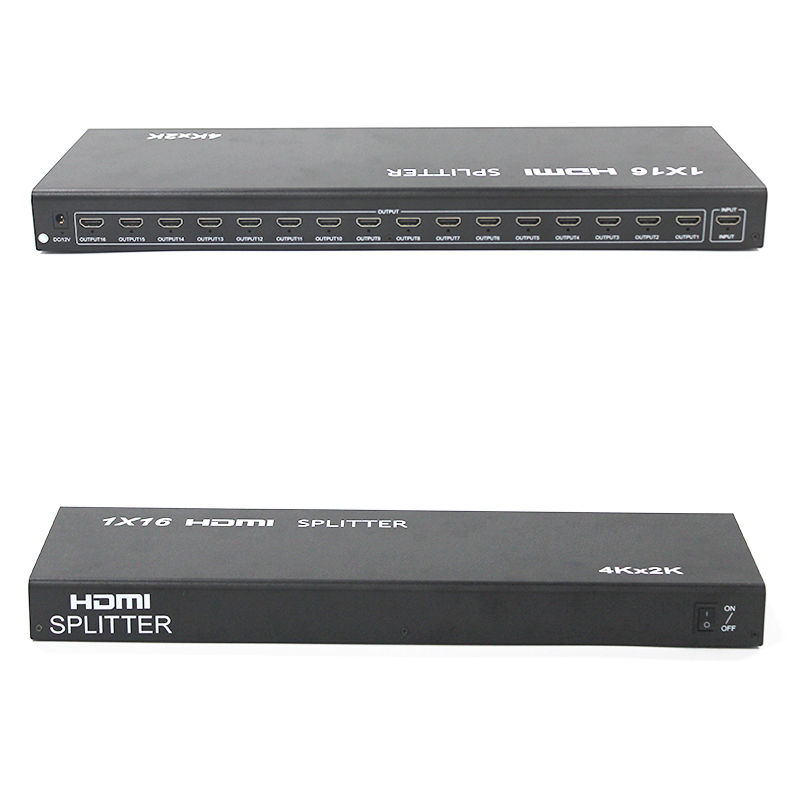

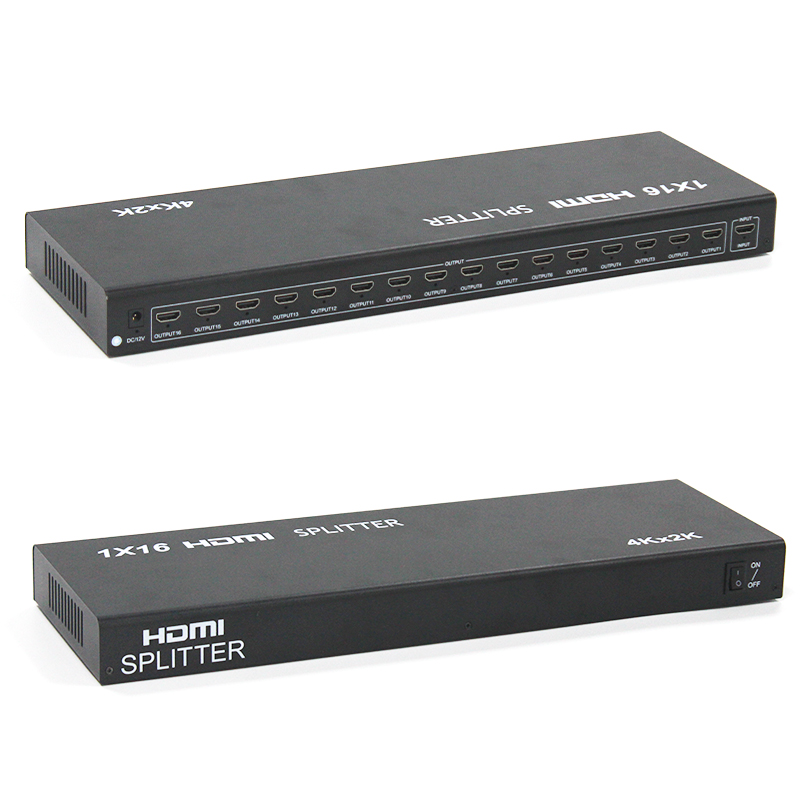

Product name: HDMI 1.4 1x16 Splitter

Model: HS-1016

1. Package Contents

• 1 x 4K UHD HDMI Splitter (1 Input, 16 Outputs)

• 1 x Power adapter

• 1 x User Manual

2. Connect and Operate

• Connect the HD source to the Splitter input with one HDMI cable

• Connect the Splitter output to the displays with 16 HDMI cables

• Connect the 12V/3A power adapter to the Splitter

• Reset button: it’s a Reset key for system Reset.

3. Specification

• Power adapter format Input: AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A

• Supports resolution up to 4K x 2K @ 30Hz

• HDCP 1.4 Protocol Compliant

• Compatible with HDMI 1.4/ 1.3/ 1.2/1.1/1.0

• Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD / DTS-HD Master.

• Max bandwidth: 340MHz

• Max baud rate: 3.4Gbps

• Input cable distance: (1080p resolution) ≤10m,(4K resolution)≤5m AWG26 HDMI standard cable

• Output cable distance: (1080p resolution) ≤15m,(4K resolution)≤10m AWG26 HDMI standard cable

• Full Shield and Gold Plated Connectors for Better Image / Sound Quality/ Stable signal transmission and more durability.

4. Attention

• Do not expose to liquids, fire, or explosive substances.

• Do not expose to extreme temperatures.

• Do not disassemble.

• Unplug during lightning storms or when unused for an extended period of time.

• Children should be supervised to ensure they do not play with the appliance.

Unit size：46x15x4 cm

Net Unit Weight：1700 g

Gross Unit Weight：2000 g

Gift box size：49x23x6.5 cm

Master carton dimensions：50.5x37.5x24.8 cm

Pieces per master carton：6 PCS  N.W.：12 kg   G.W.：13 kg
