Product name: 60M HDMI KVM USB Extender

Specifications

Model: HE-60C

Function:

【196FT/60M HDMI KVM Extender】The USB HDMI KVM Extender lets you control a PC from up to 196ft/60m away over a single qualified Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video.

【1080P@60Hz Resolution】A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance.

【USB Extension】2-USB port on the Receiver (RX) allows you to control a computer system using a mouse/keyboard. This HDMI KVM USB extender can be widely used in home security systems, camera monitoring, conference hall broadcasting, restaurant projection, and more.

【Durability & Reliability】Compact design and aluminum alloy metal shell are good for heat dissipation, and wear resistance, and can extend its service life.

【Plug & Play】Easy to carry, install, and use, no software and extra settings needed.

Features:

1. Control a PC at a distance of up to 60M via a USB mouse and keyboard.

2. Supports PC resolutions up to 1080P/60hz.

3. Video and audio over HDMI port supported.

4. HDMI audio extraction, both TX&RX support 3.5mm stereo audio out.

5. Windows & Mac supported.

6. Supports USB mouse and keyboard extension over ethernet cable.

7. HDMI KVM extender with IR control.

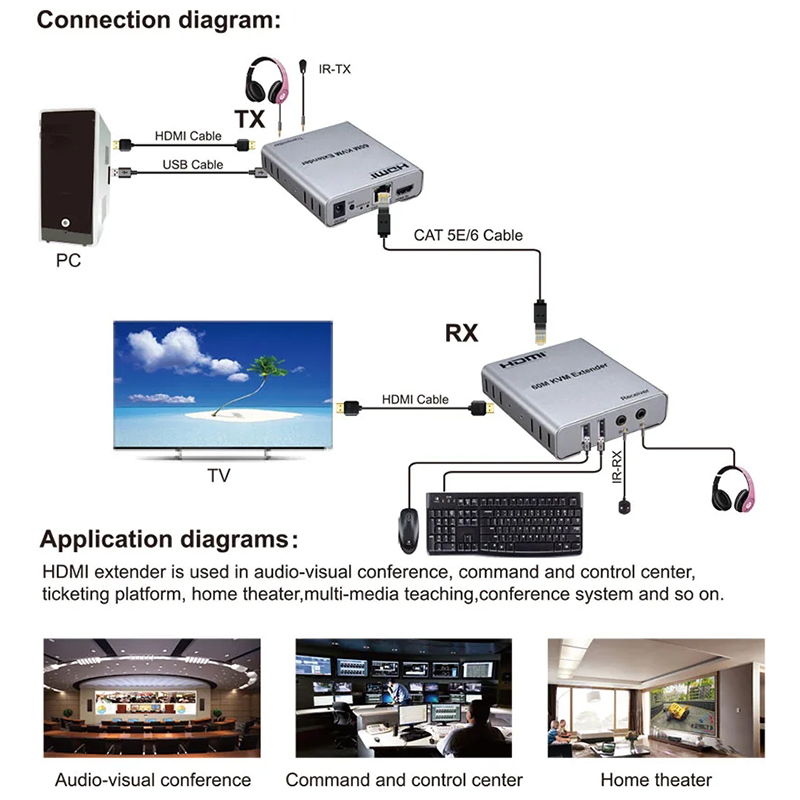

Connection and operation

Package Contents

1 x TX transmitter

1 x RX receiver

2 x 5V DC power adapter

1 x User Manual

  1 x IR transmitter

1 x IR Receiver

1 x USB cable

Product material: Aluminum alloy

Packing parameters Product Size:94x84x24mm

TX Weight: 220g

RX Weight: 220g
