Product name: 200M KVM IP Extender

Specifications

Model: HE-200IA

Function introduction:

HDMI Over Ethernet is based on TCP/IP standards. It transmits your HD display with high resolutions up to 200 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. With the advantage of TCP/IP standard, you can extend your HD video to multiple displays by using an Ethernet Switch, providing greater flexibility and options when integrating several home theater components.

Features:

• Support HD1.3

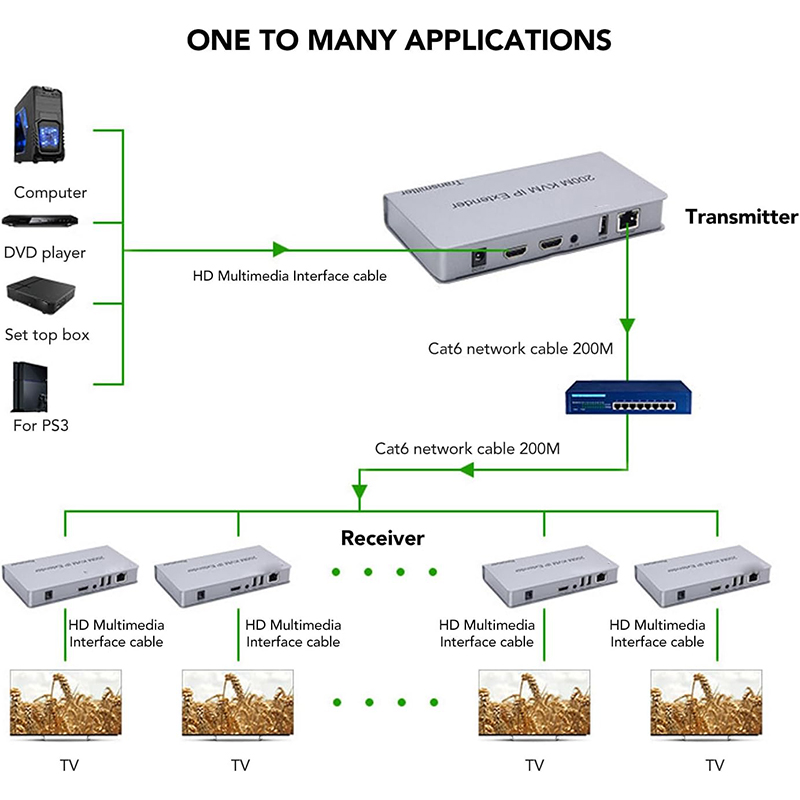

• Support point-to-point mode, one point-to-multipoint mode, and cascade connection mode. ( Multi and cascade modes need network interchange/Network Switch to use together)

• Support 1 Transmitter (TX) up to 20 Receivers (RX) 802.3 Ethernet standard.

• Support IR remote control

• Support USB mouse and keyboard extension.

• The design of pure hardware, plug and play, with no need for additional software.

Specifications:

• Resolutions:480p,720p,1080p

• Audio:Sample rate:32kHz,44.1kHz and 48kHz code

• IR remote control:38 KHz; N E C

• HD version: HD 1.3

• Power adapter: DC:5V/1A

• Operating Temperature/Humidity: 0℃-45℃/10%-80%RH(no condensation)

• Storage Temperature/Humidity :-10℃-70℃/5%-90%RH(no condensation)

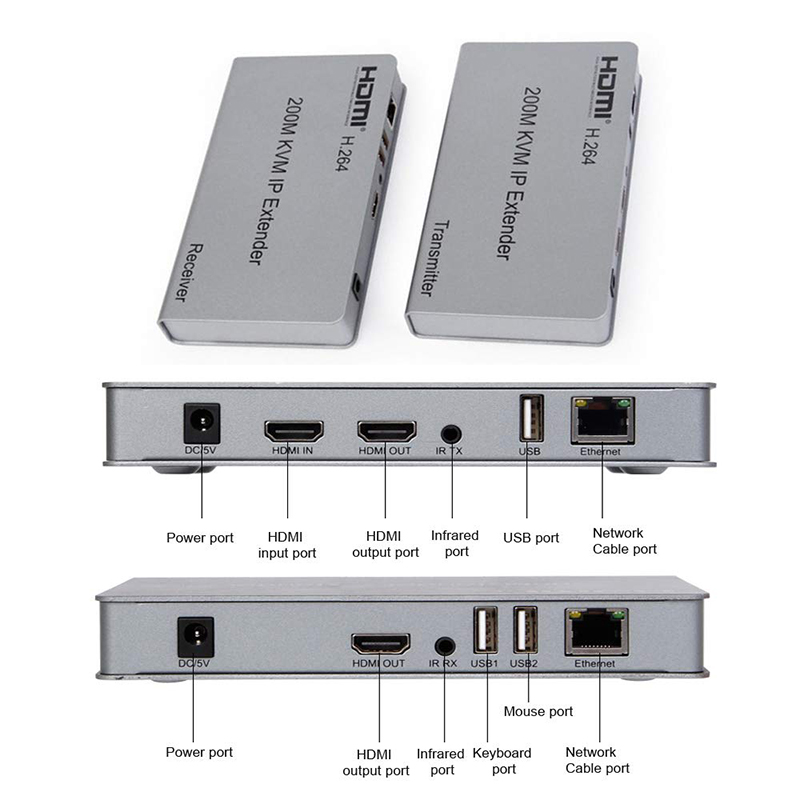

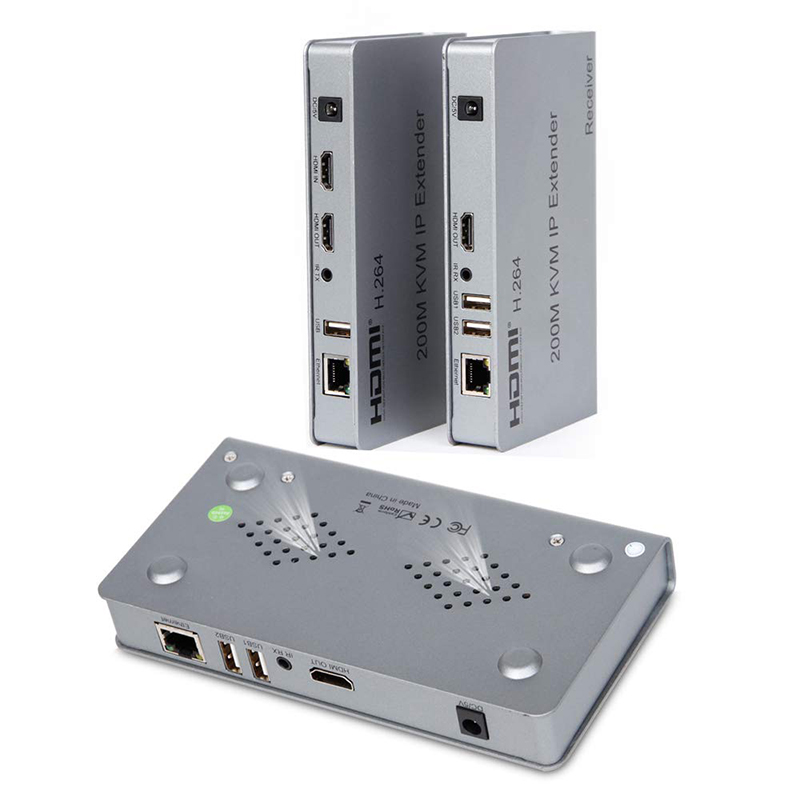

Connection and operation

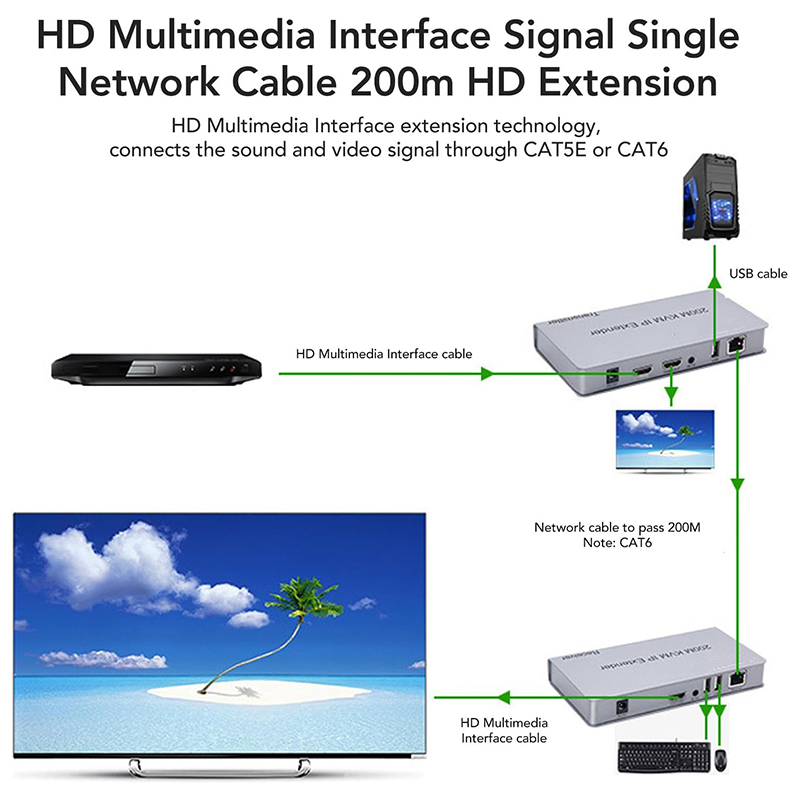

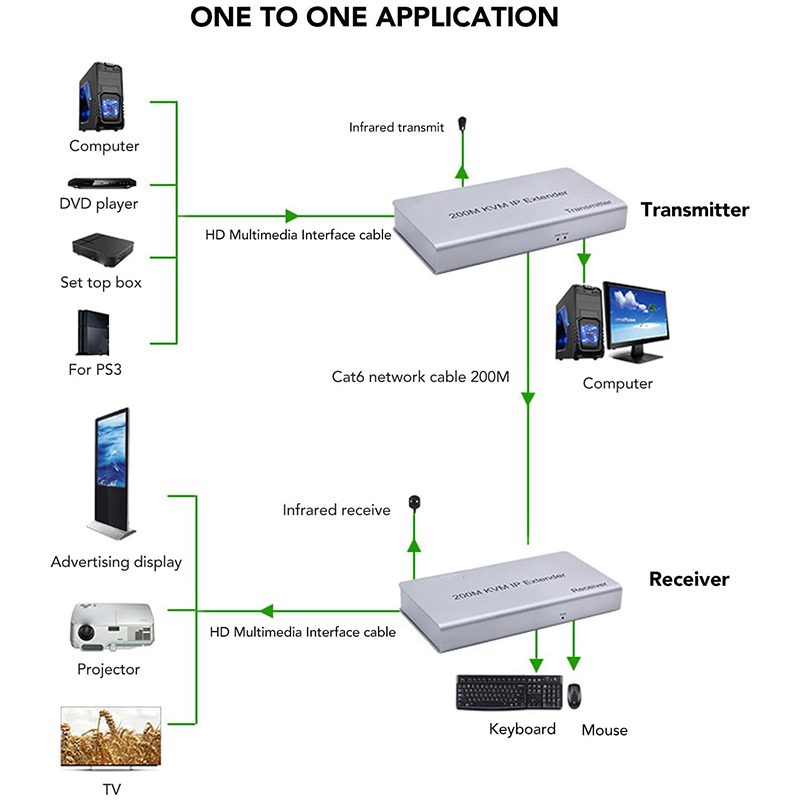

(1) Connect the HDMI source (such as DVD, PS3, STB ) to the “HDMI IN” of the transmitter by HDMI cable.

(2) Connect the “HDMI out” of the Receiver to the HDTV display by HDMI cable.

(3) Connect the Transmitter and Receiver with one cat5e/6 cable (recommend).the furthest distance is 200M.

(4) Connect the “IR receiver “to the“IR-RX” port on the receiver, and the“ IR transmitter ” into the “IR-TX” on the transmitter, and make sure the IR transmitter aim at the IR port of the source.

(5) Plug the mouse and keyboard into the USB port of the receiver, and connect the USB port of the transmitter with the computer if you need the KVM control function.

(6) Connect two pieces of 5V power supply to the transmitter and receiver, and power on the HDTV display and HDMI source.

Package Contents:

• 1 x TX transmitter

• 1 x RX receiver

• 1 x IR Cable

• 2 x 5V/1A DC power Adapter

• 1 x User Manual

Product material: Metal shell

Unit size:16x8.5x2.3cm

Net Unit Weight: 474g x2

Gross Unit Weight: 1150 g

Gift box size: 220x190x80 cm

Master carton dimensions: 46x43x21 cm

Pieces per master carton: 10 Set

N.W.: 11.5 kg

G.W.:12.5 kg
